Home Boat Covers Inflatable / Rib Boat Covers Rib Boat Trailerable Cover with rear openings for Roll Bars/Arches Rib Boat Covers

Rib Boat Covers

Heavy Duty High Quality Rib Covers.



  • Ideal for Winter or Long-term storage
  • Full protection for the boat
  • Double lapped seams for added strength

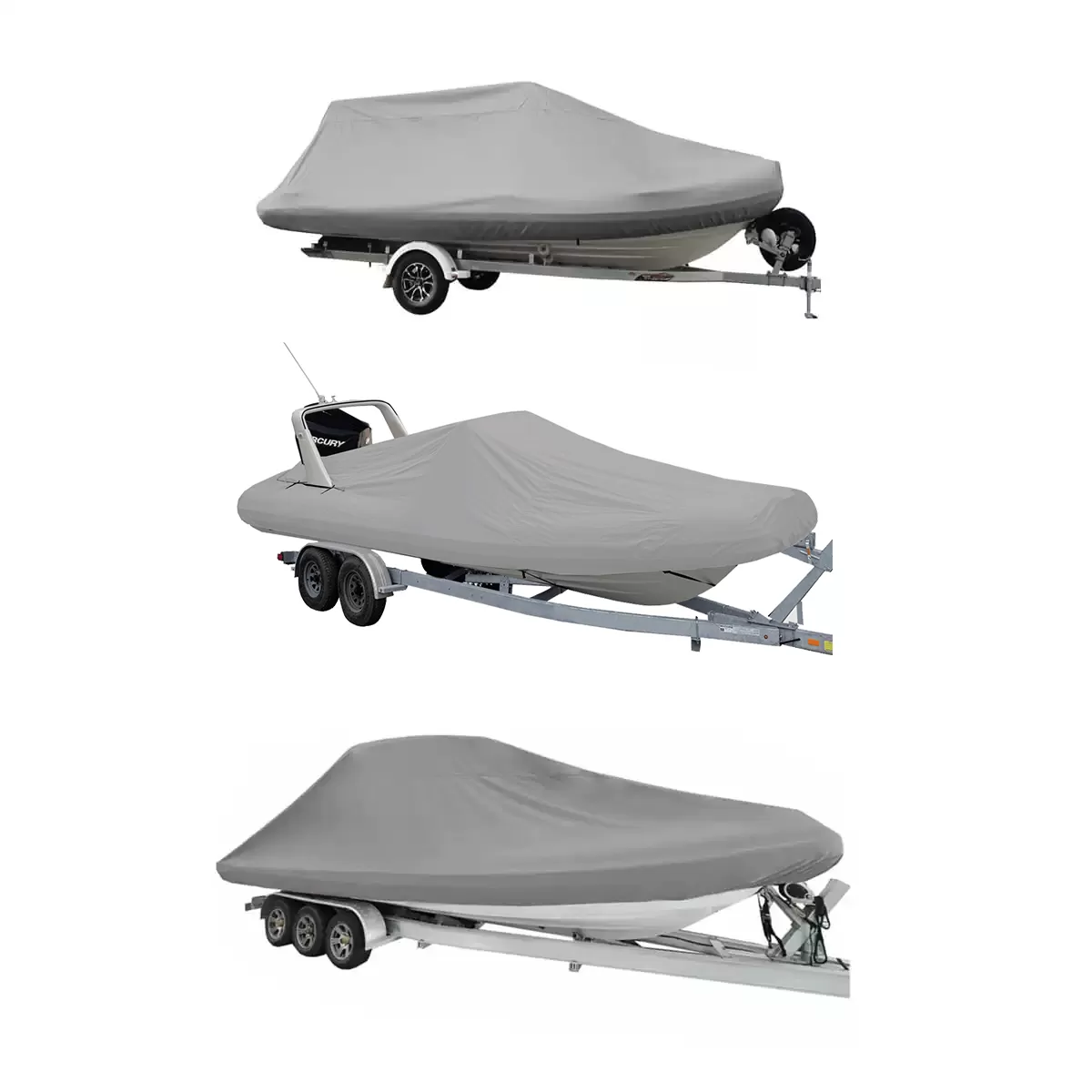

  • Available in 3 Styles

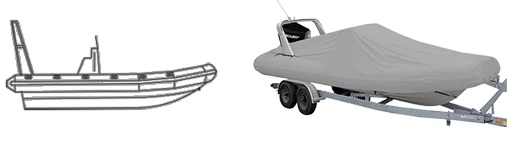

Style A:

Trailerable and suitable for highway towing with rear openings for Roll Bars / Arches




Style B:

Full storage cover for ribs fitted with Roll Bars / Arches

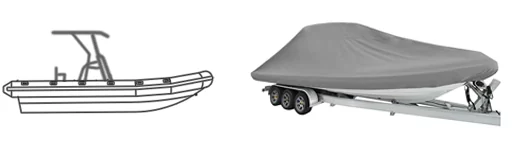

Style C:

Full storage cover for ribs fitted with T-Top

Boat Style
Boat Length
From: $330.10
  • SKU: MA 600P
DESCRIPTION

Style A
  • Design to fit rib boats with centre consoles and rear arches.
  • Rear opening for Roll Bar with Buckle Fastening
  • Trailerable and suitable for highway towing
BOAT
LENGTH		 MAX.
BEAM
WIDTH		 FABRIC
WIDTH
(W)		 FABRIC
LENGTH
(L)
4.7 – 5.0m 2.3m 3700mm 6000mm
5.1 – 5.3m 2.3m 3800mm 6600mm
5.4 – 5.6m 2.3m 3900mm 7000mm
5.7 – 5.9m 2.3m 4000mm 7300mm
6.0 – 6.3m 2.3m 4200mm 7600mm
6.4 – 6.7m 2.5m 4300mm 7900mm
6.8 – 7.1m 2.8m 4500mm 8400mm
7.2 – 7.5m 2.8m 4600mm 8700mm
7.6 – 7.9m 2.8m 4700mm 9100mm
8.0 – 8.3m 2.8m 4800mm 9500mm
8.4 – 8.7m 3.1m 5000mm 10000mm
8.8 – 9.1m 3.1m 5100mm 10500mm

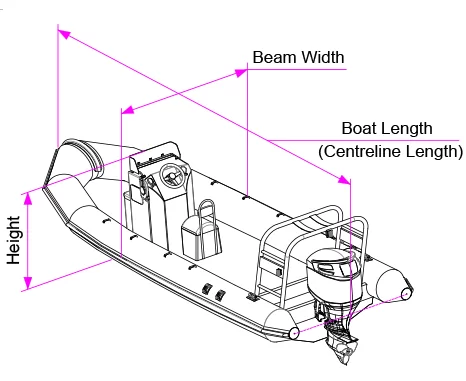

To MEASURE THE BOAT LENGTH Measure in a straight line the centreline distance of your boat from Bow to Stern.
To MEASURE THE BEAM WIDTH Measure in a straight line the distance across the beam (widest point of your boat).
To MEASURE THE HEIGHT Measure a straight line from the gunwale to the highest point on your boat including boat fittings e.g.cabins, windscreens etc.
To Measure Fabric Width Using the ‘overall cover fabric width‘ measurement of your chosen cover, measure across the widest point of your boat, over the top of any boat fittings e.g. cabin, windscreens etc.to the point on the hull where the cover’s hem will finish.
To Measure Fabric Length
Using the ‘overall cover fabric length ‘ measurement of your chosen cover, measure along the length of your boat, over the top of any boat fittings e.g. cabin, windscreens etc. to the point on the hull where the cover’s hem will finish.

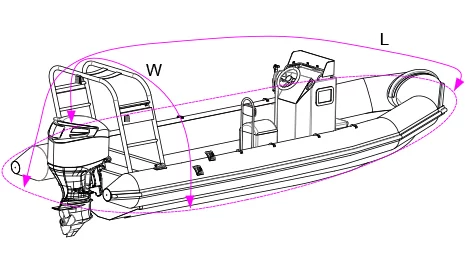

Overall Cover Dimensions
W FABRIC WIDTH
L FABRIC LENGTH



Style B
  • Design to fit rib boats with centre consoles and rear arches
  • Max. Arch Height 1.5m
  • Ideal for Winter or Long-term storage
BOAT
LENGTH		 MAX.
BEAM
WIDTH		 FABRIC
WIDTH
(W)		 FABRIC
LENGTH
(L)
4.7 – 5.0m 2.3m 4850mm 6000mm
5.1 – 5.3m 2.3m 4850mm 6600mm
5.4 – 5.6m 2.3m 4850mm 7000mm
5.7 – 5.9m 2.3m 4850mm 7300mm
6.0 – 6.3m 2.3m 4900mm 7600mm
6.4 – 6.7m 2.5m 5050mm 7900mm
6.8 – 7.1m 2.8m 5350mm 8400mm
7.2 – 7.5m 2.8m 5350mm 8700mm
7.6 – 7.9m 2.8m 5350mm 9100mm
8.0 – 8.3m 2.8m 5350mm 9500mm
8.4 – 8.7m 3.1m 5650mm 10000mm
8.8 – 9.1m 3.1m 5650mm 10500mm
To MEASURE THE BOAT LENGTH Measure in a straight line the centreline distance of your boat from Bow to Stern.
To MEASURE THE BEAM WIDTH Measure in a straight line the distance across the beam (widest point of your boat).
To MEASURE THE HEIGHT Measure a straight line from the gunwale to the highest point on your boat including boat fittings e.g.cabins, windscreens etc.
To Measure Fabric Width Using the ‘overall cover fabric width‘ measurement of your chosen cover, measure across the widest point of your boat, over the top of any boat fittings e.g. cabin, windscreens etc.to the point on the hull where the cover’s hem will finish.
To Measure Fabric Length
Using the ‘overall cover fabric length ‘ measurement of your chosen cover, measure along the length of your boat, over the top of any boat fittings e.g. cabin, windscreens etc. to the point on the hull where the cover’s hem will finish.

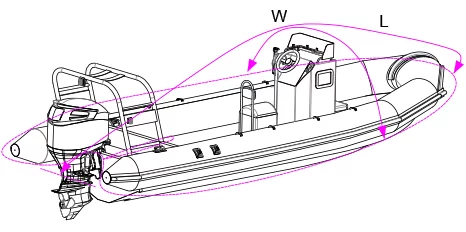

Overall Cover Dimensions
W FABRIC WIDTH
L FABRIC LENGTH



Style C
  • Design to fit Rib Boats with Centre Consoles and T-Top
  • Max. Arch Height 1.5m
  • Ideal for Winter or Long-term storage
BOAT
LENGTH		 MAX.
BEAM
WIDTH		 FABRIC
WIDTH
(W)		 FABRIC
LENGTH
(L)
COVERS THE OUTBOARD MOTOR
6.8 – 7.1m 2.8m 6600mm 9100mm
7.2 – 7.5m 2.8m 6600mm 9500mm
7.6– 7.9m 2.8m 6600mm 9800mm
8.0– 8.3m 2.8m 6600mm 10200mm
8.4 – 8.7m 3.1m 6700mm 10600mm
DO NOT COVER THE OUTBOARD MOTOR
8.8– 9.1m 3.1m 6100mm 9700mm
9.2 – 9.5m 3.2m 6300mm 10200mm
9.6 – 9.9m 3.2m 6300mm 10600mm
10.0 – 10.5m 3.2m 6300mm 11100mm
10.6 – 11.0m 3.2m 6300mm 11600mm
To MEASURE THE BOAT LENGTH Measure in a straight line the centreline distance of your boat from Bow to Stern.
To MEASURE THE BEAM WIDTH Measure in a straight line the distance across the beam (widest point of your boat).
To MEASURE THE HEIGHT Measure a straight line from the gunwale to the highest point on your boat including boat fittings e.g.cabins, windscreens etc.
To Measure Fabric Width Using the ‘overall cover fabric width‘ measurement of your chosen cover, measure across the widest point of your boat, over the top of any boat fittings e.g. cabin, windscreens etc.to the point on the hull where the cover’s hem will finish.
To Measure Fabric Length
Using the ‘overall cover fabric length ‘ measurement of your chosen cover, measure along the length of your boat, over the top of any boat fittings e.g. cabin, windscreens etc. to the point on the hull where the cover’s hem will finish.

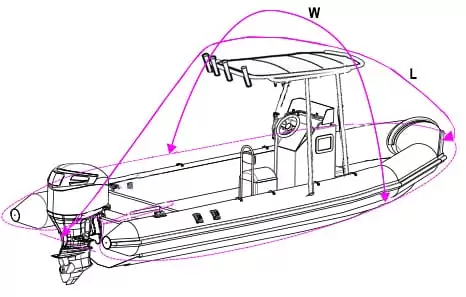

Overall Cover Dimensions
W FABRIC WIDTH
L FABRIC LENGTH

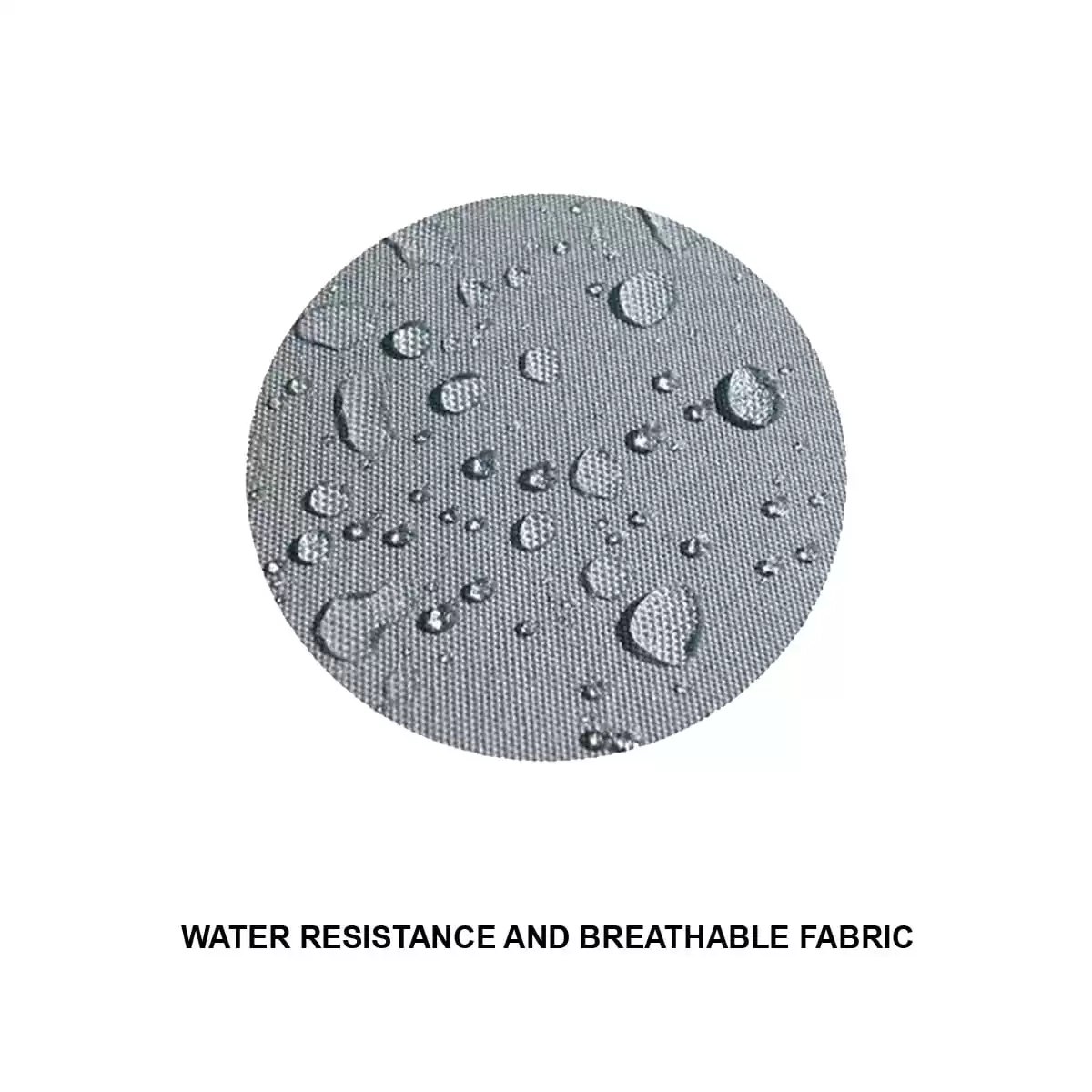

FABRIC
DETAILS
Atlas Marine Fabrics Gray
Weight 280g/m²
Material 100% High Tech Polyester
Water Column ≥ 150 mbar (1500 mm)
Light & Weather Fastness Note 6-7
Tensile Strength ≈ 2200 N¹ | 1400 N²
Elongation ≈ 40 %¹ | 30 %²
Colour Fastness to rubbing Note 4-5³ | Note 44
Chlorine Resistant Note 4-5
Water Repellency Note 100
Oil Repellency Note 4
Coating Polyurethan [PU]
UV Protection Factor UPF 50+ (measured > UPF 80)
Visit the ATLAS Fabrics website
